Introduction:

By taking the help of modern engineering and technology we have designed a unique bicycle which moves on road when someone walks on it. This simplest mechanism is associated with its comfort as well as unique design. It doesn’t require conventional electricity to charge its battery rather the battery inside it is get charged when we take it on road. This battery is useful to charge our mobile phone, to power the headlight and turning indicators at night. It is helpful to reduce obesity and maintain good health.

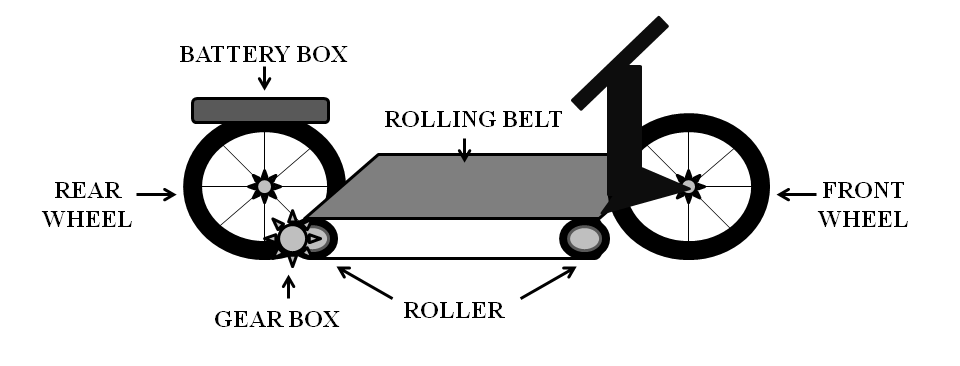

Block Diagram:

Components required:

1. Wheel
2. Gearbox
3. Roller
4. Rolling belt
5. Generator
6. Battery
7. Aluminum frame

Working:

When a person starts walking on the rolling belt, the rollers rotate by getting human effort. The rollers are attached to gear mechanism which produces torque. The attached chain drive pulls the chain to rotate the rear wheel. Similarly the generator is powered from the gear mechanism to charge the battery.

Advantages:

1. This simple bicycle can provide a comfortable ride.
2. It is helpful to reduce obesity as well as air pollution.

Designer:
Er. Anil Kumar Prusty
Phone No. : +91 9861004895
